Line

The Line component renders lines and splines from a set of 3D points. This is ideal for:

  • Visualizing camera trajectories and paths
  • Drawing splines and curves
  • Creating wireframe visualizations
  • Displaying motion trails

Basic Usage

A minimal example that creates a line from points:

import asyncio
import numpy as np
from vuer import Vuer
from vuer.schemas import DefaultScene, Line, OrbitControls

app = Vuer()

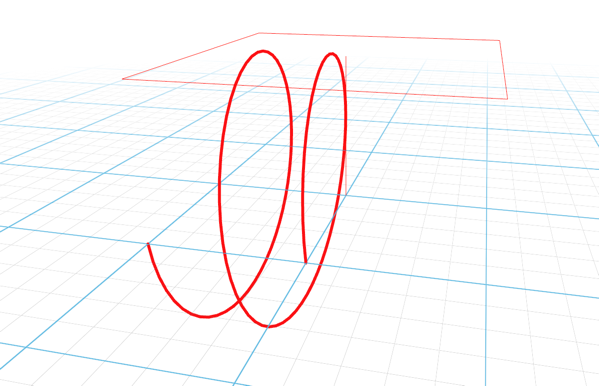

# Create a spiral path
t = np.linspace(0, 4 * np.pi, 100)
points = np.column_stack([
    np.cos(t),
    np.sin(t),
    t / (4 * np.pi)
])

@app.spawn(start=True)
async def main(session):
    session.set @ DefaultScene(
        Line(
            key="spiral",
            points=points,
            color="red",
            lineWidth=3,
        ),
        bgChildren=[
            OrbitControls(key="OrbitControls")
        ],
    )

    while True:
        await asyncio.sleep(1.0)

Key Parameters

Parameter Type Default Description
key str - Unique identifier for the line
points list/ndarray - Array of 3D points (Vector3, Vector2, [x,y,z], [x,y], or numbers)
color str "black" Line color (hex or named color)
lineWidth float 1 Line thickness in pixels
segments bool False If true, renders LineSegments2; otherwise renders Line2
dashed bool False Enable dashed line rendering
vertexColors list - Optional array of RGB values for each point

Learn More

For detailed examples of using Line, see:
