CoordsMarker

The CoordsMarker component displays 3D coordinate axis markers. This is ideal for:

• Visualizing coordinate frames and orientations
• Debugging transformations and poses
• Showing robot joint frames
• Creating reference markers in scenes

Basic Usage

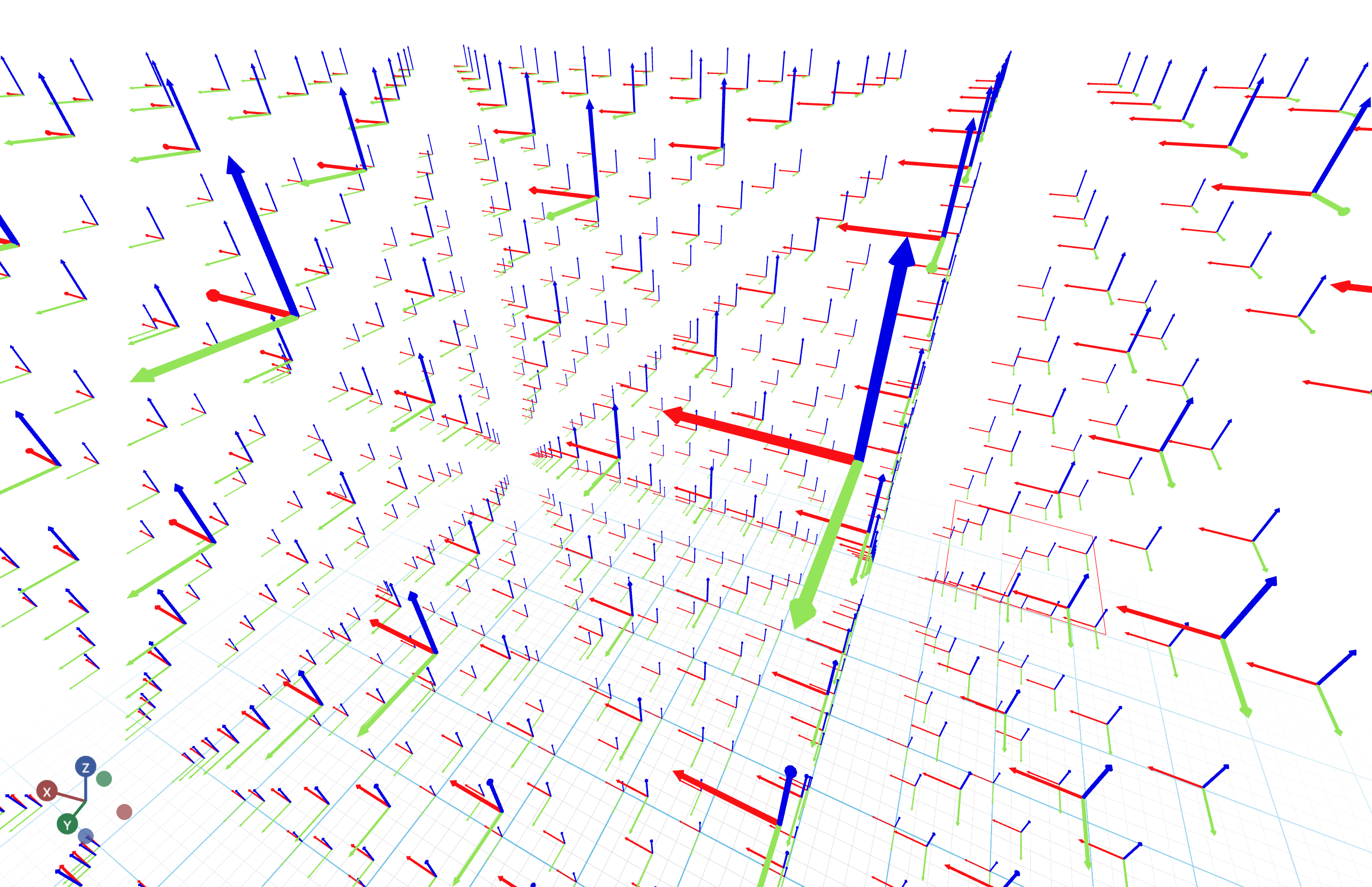

A minimal example that creates coordinate markers:

import asyncio
from vuer import Vuer
from vuer.schemas import DefaultScene, CoordsMarker, OrbitControls

app = Vuer()

n = 10
N = 1000

@app.spawn(start=True)
async def main(session):
    markers = [
        CoordsMarker(
            position=[i % n, (i // n) % n, (i // n ** 2) % n],
            scale=0.25,
        )
        for i in range(N)
    ]

    session.set @ DefaultScene(
        *markers,
        bgChildren=[
            OrbitControls(key="OrbitControls")
        ],
    )

    while True:
        await asyncio.sleep(1.0)

Key Parameters

Parameter	Type	Default	Description
key	str	-	Unique identifier for the marker
position	list	[0,0,0]	Marker position in world coordinates
rotation	list	[0,0,0]	Marker rotation (Euler angles)
matrix	list	-	4x4 transformation matrix (16 numbers). Overrides position and rotation
scale	float	1.0	Overall marker size
headScale	float	1.0	Scale factor for the arrow heads
lod	int	-	Level of detail - number of segments for the cone and stem
