Primitive Geometries
Primitive geometries are the building blocks of 3D scenes. Vuer provides 14 fundamental geometric shapes that can be combined, transformed, and styled to create complex visualizations.
Shared Properties
All primitives share these properties:
from vuer.schemas import Box # or any other primitive
Box(
# Geometry-specific parameters
args=[...], # Varies by shape
# Transform properties
position=[x, y, z], # Position in 3D space
rotation=[rx, ry, rz], # Rotation in radians around X, Y, Z axes
scale=[sx, sy, sz], # Scale factors (1 = original size)
# Material properties
materialType="standard", # "basic", "lambert", "phong", "standard", "physical"
color="#ff0000", # Hex color or CSS color name
material=dict( # Advanced material properties
roughness=0.5,
metalness=0.0,
# ... see Materials guide
),
# Interaction
key="unique-id", # Required for updates and events
onClick=handler, # Click event handler (client-side)
)
Components

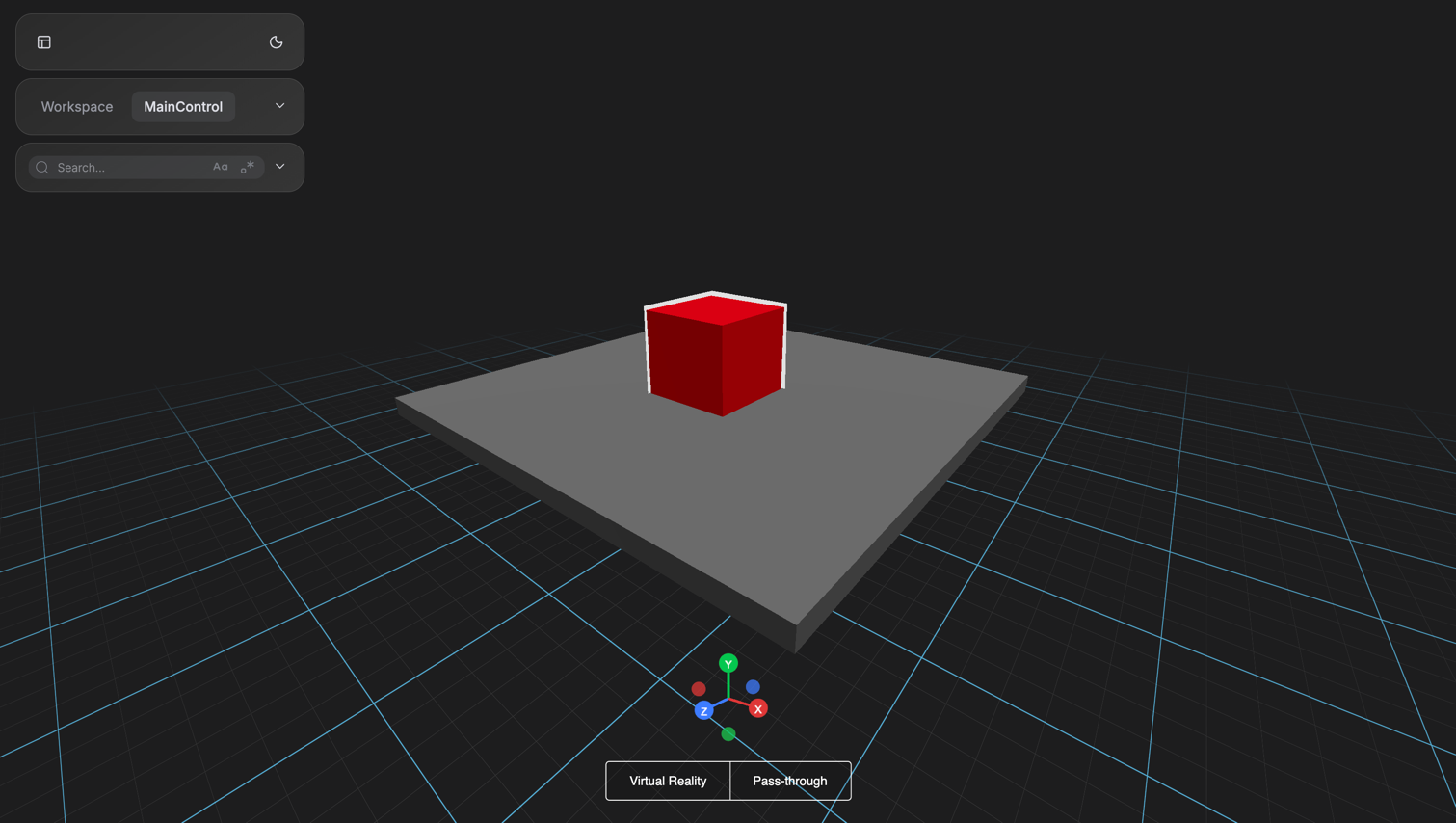

Box
A rectangular box or cube shape with customizable dimensions.
args = [
width, # default: 1
height, # default: 1
depth, # default: 1
widthSegments, # default: 1
heightSegments, # default: 1
depthSegments # default: 1
]
from vuer import Vuer, VuerSession
from vuer.schemas import Scene, Box
app = Vuer()
@app.spawn(start=True)
async def main(session: VuerSession):
session.set @ Scene(
# Simple cube
Box(
args=[1, 1, 1],
position=[0, 0.7, 0.2],
material=dict(color="red"),
key="cube",
outlines=dict(angle=0, thickness=0.005, color="white"), # (angle, thickness, color)
),
# Flat platform
Box(
args=[5, 0.2, 5],
position=[0, 0.2, 0],
material=dict(color="grey"),
key="platform",
),
)
await session.forever()

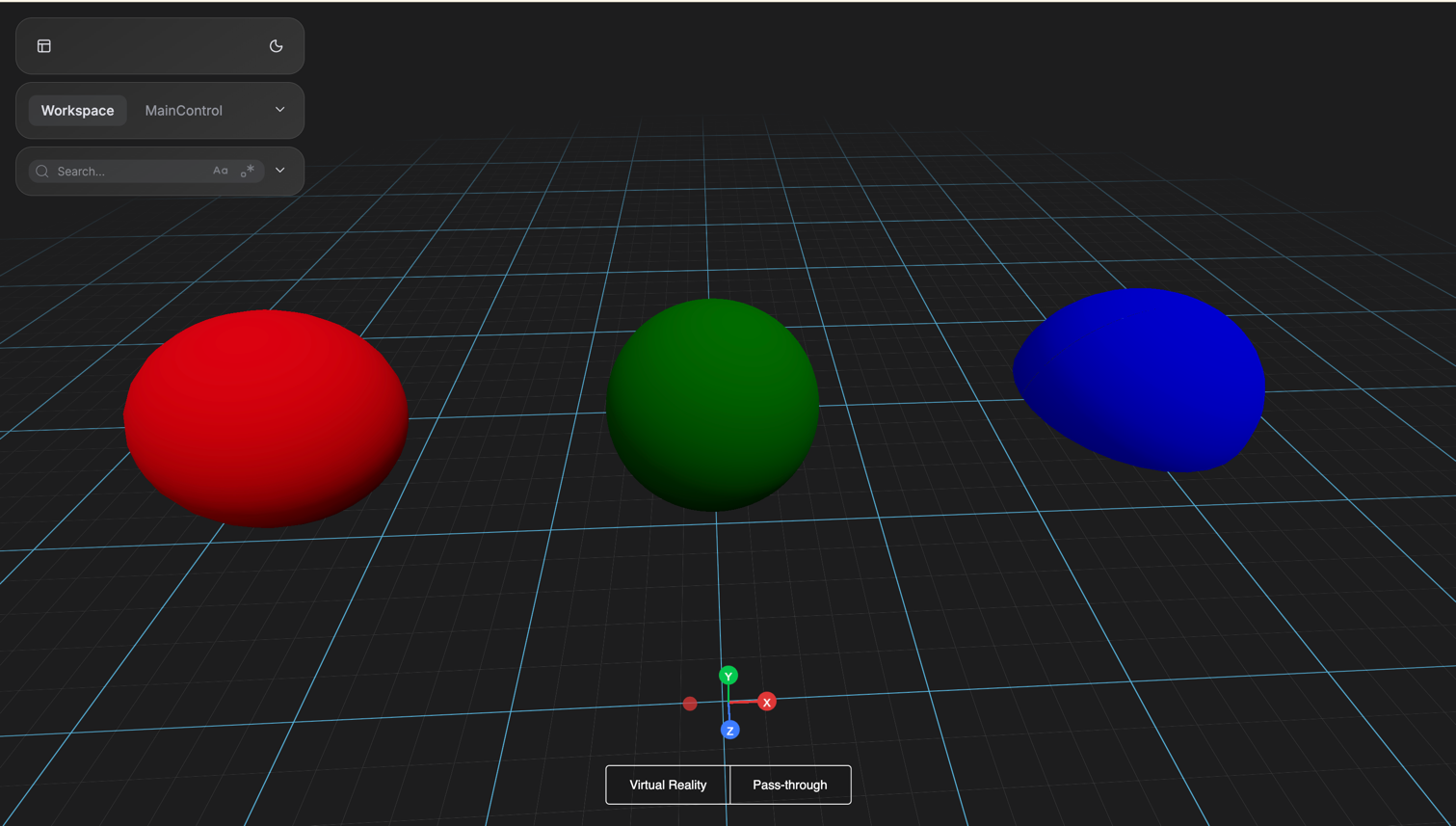

Sphere
A perfect spherical shape with customizable radius and segment resolution.
args = [
radius, # default: 1
widthSegments, # default: 32 (horizontal segments)
heightSegments, # default: 16 (vertical segments)
phiStart, # default: 0 (horizontal starting angle)
phiLength, # default: 2π (horizontal sweep angle)
thetaStart, # default: 0 (vertical starting angle)
thetaLength # default: π (vertical sweep angle)
]
from vuer import Vuer, VuerSession
from vuer.schemas import Scene, Sphere
app = Vuer()
@app.spawn(start=True)
async def main(session: VuerSession):
session.set @ Scene(
# Simple sphere
Sphere(
args=[0.5], # Just radius, use defaults for segments
position=[0, 1, 0],
material=dict(color="red"),
key="ball",
),
# High-poly smooth sphere
Sphere(
args=[0.5, 64, 64], # More segments = smoother
position=[2, 1, 0],
material=dict(color="green"),
key="smooth-ball",
),
# Hemisphere (half sphere)
Sphere(
args=[0.5, 32, 16, 0, 6.28, 0, 1.57], # thetaLength controls how much of sphere
position=[4, 1, 0],
material=dict(color="blue"),
key="hemisphere",
)
)
await session.forever()

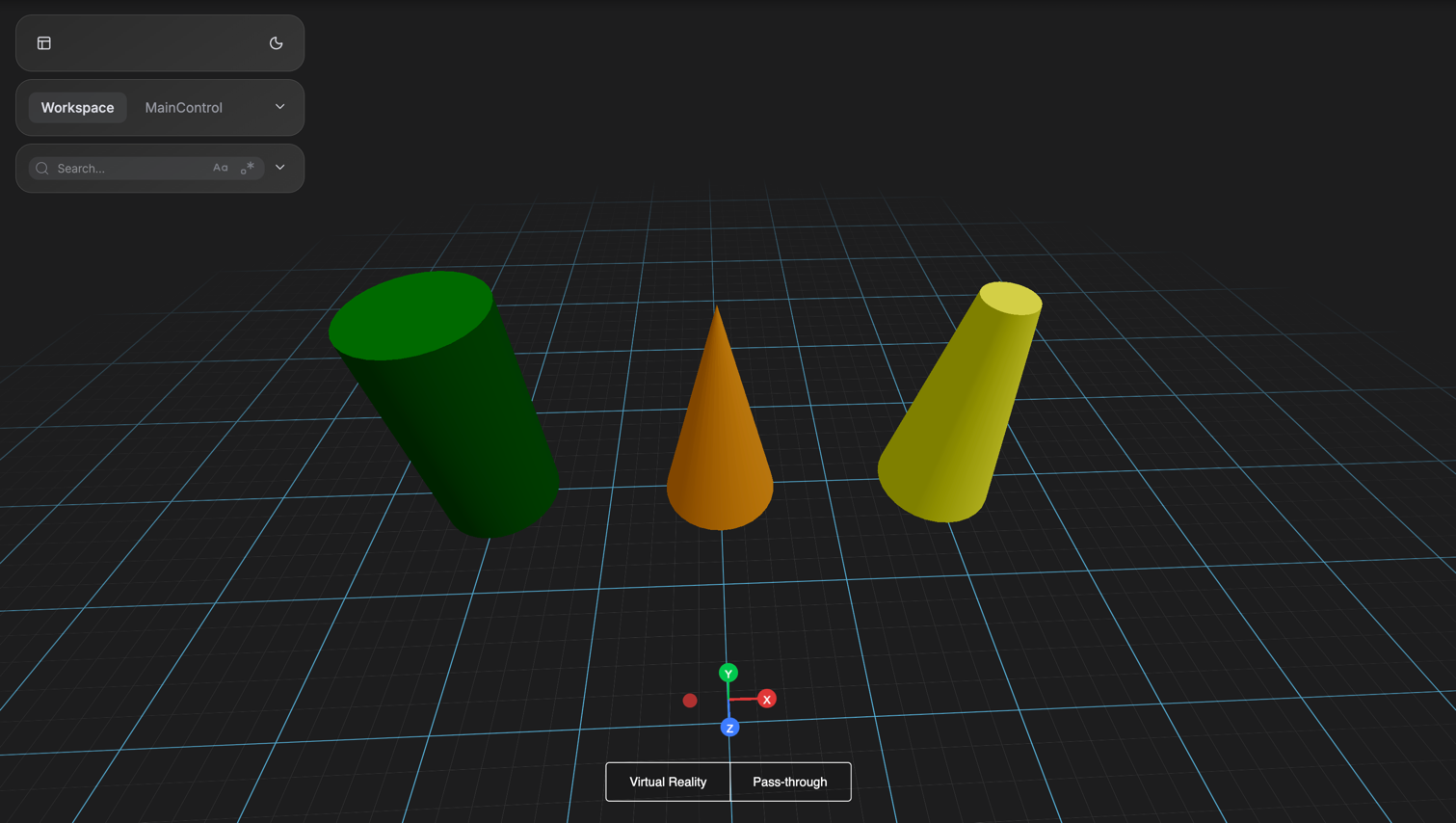

Cylinder
A cylindrical tube shape with separate top and bottom radii.
args = [
radiusTop, # default: 1
radiusBottom, # default: 1
height, # default: 1
radialSegments, # default: 32
heightSegments, # default: 1
openEnded, # default: False
thetaStart, # default: 0
thetaLength # default: 2π
]
from vuer import Vuer, VuerSession
from vuer.schemas import Scene, Cylinder
app = Vuer()
@app.spawn(start=True)
async def main(session: VuerSession):
session.set @ Scene(
# Standard cylinder
Cylinder(
args=[0.5, 0.5, 2],
position=[0, 1, 0],
material=dict(color="green"),
key="pillar",
),
# Cone (radiusTop=0)
Cylinder(
args=[0, 0.5, 2],
position=[2, 1, 0],
material=dict(color="orange"),
key="cone-shape",
),
# Truncated cone
Cylinder(
args=[0.2, 0.5, 2],
position=[4, 1, 0],
material=dict(color="yellow"),
key="truncated",
),
)
await session.forever()

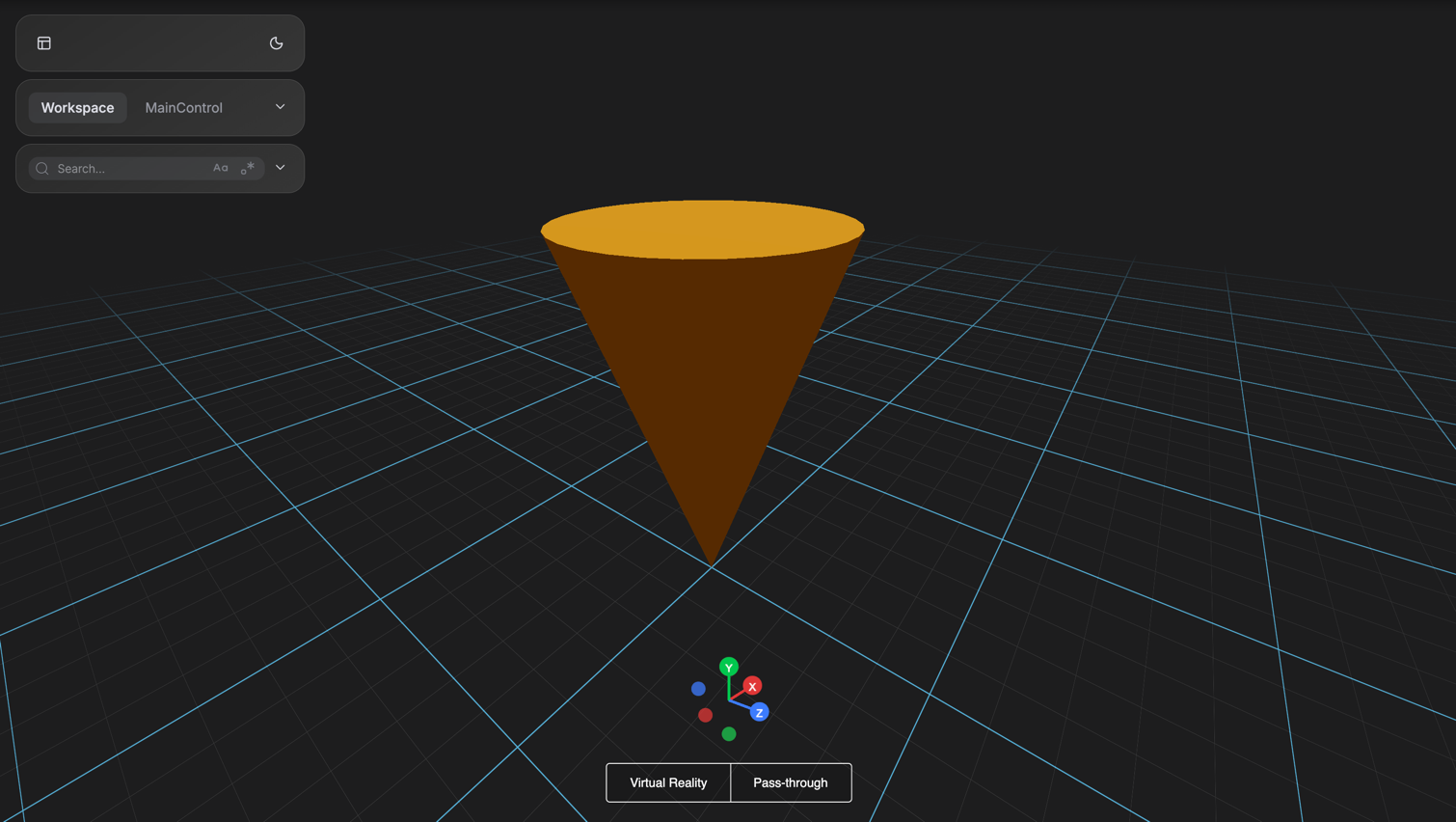

Cone
A pointed cone shape with circular base and single apex.
args = [
radius, # default: 1
height, # default: 1
radialSegments, # default: 32
heightSegments, # default: 1
openEnded, # default: False
thetaStart, # default: 0
thetaLength # default: 2π
]
from vuer import Vuer, VuerSession
from vuer.schemas import Scene, Cone
app = Vuer()
@app.spawn(start=True)
async def main(session: VuerSession):
session.set @ Scene(
Cone(
args=[0.5, 1.5],
position=[0, 0.75, 0],
rotation=[0, 0, 3.14], # Point downward
material=dict(color="orange"),
key="cone",
),
)
await session.forever()

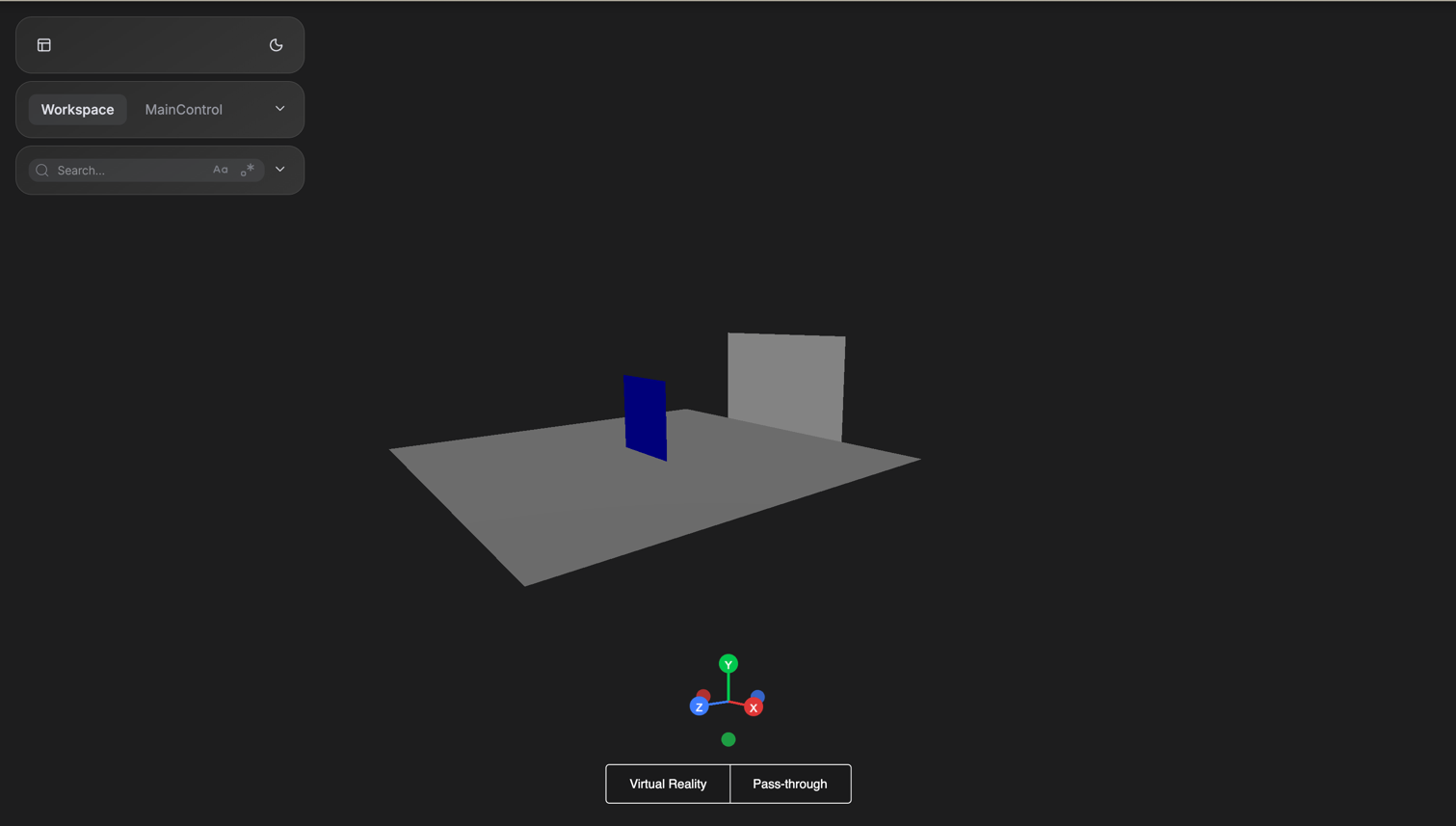

Plane
A flat rectangular surface with customizable dimensions.
args = [
width, # default: 1
height, # default: 1
widthSegments, # default: 1
heightSegments # default: 1
]
from vuer import Vuer, VuerSession
from vuer.schemas import Scene, Plane
app = Vuer()
@app.spawn(start=True)
async def main(session: VuerSession):
session.set @ Scene(
# Horizontal ground
Plane(
args=[10, 10],
position=[0, 0, 0],
rotation=[-1.57, 0, 0], # -π/2 to make horizontal
material=dict(color="grey"),
key="ground",
),
# Vertical wall
Plane(
args=[5, 3],
position=[0, 1.5, -5],
material=dict(color="white"),
key="wall",
),
# Two-sided plane
Plane(
args=[2, 2],
position=[0, 1, 0],
material=dict(side=2, color="blue"), # 0=front, 1=back, 2=both
key="double-sided",
),
)
await session.forever()

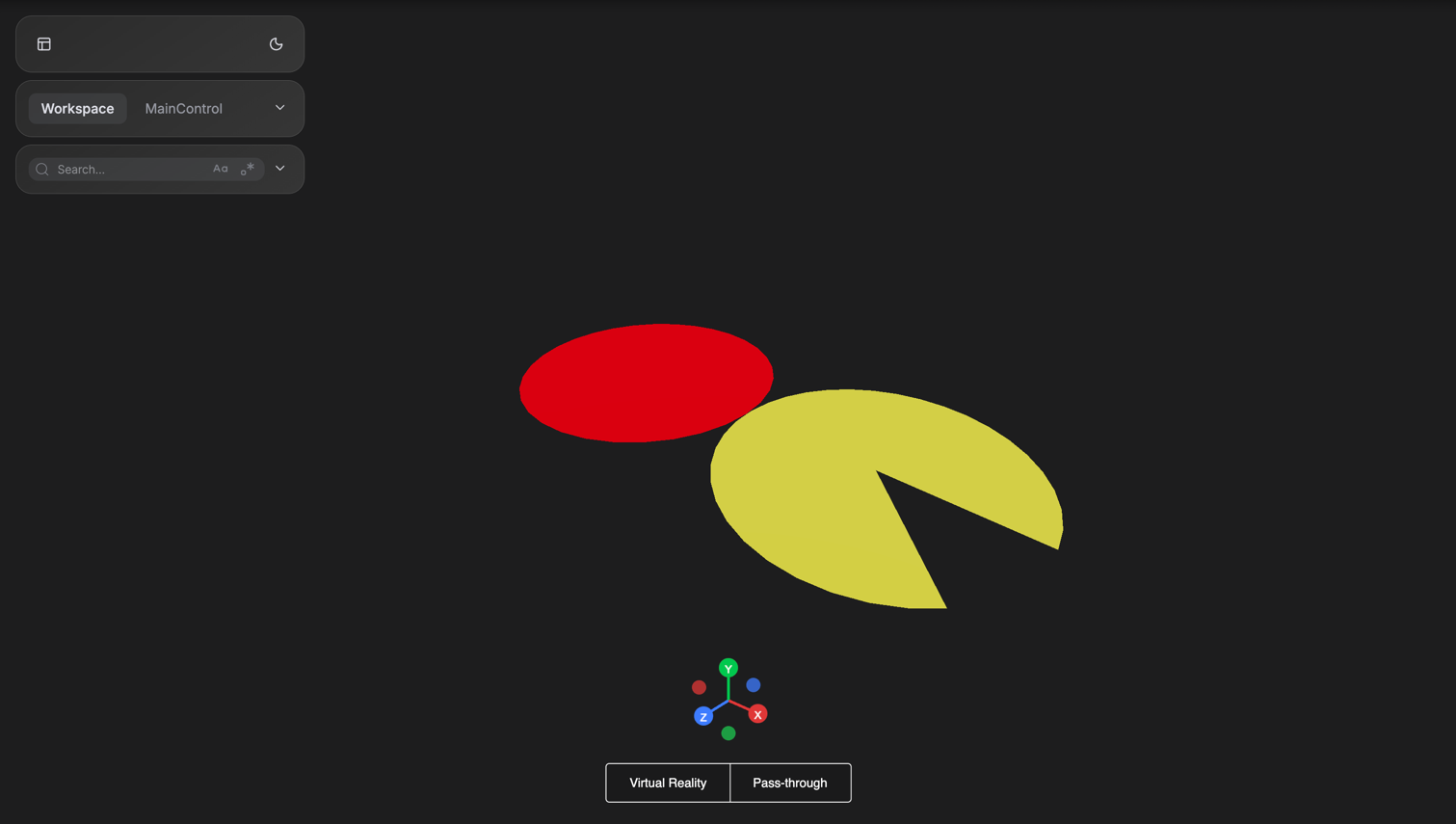

Circle
A flat circular disc with customizable radius and arc angle.
args = [
radius, # default: 1
segments, # default: 32 (triangular facets)
thetaStart, # default: 0
thetaLength # default: 2π (full circle)
]
from vuer import Vuer, VuerSession
from vuer.schemas import Scene, Circle
app = Vuer()
@app.spawn(start=True)
async def main(session: VuerSession):
session.set @ Scene(
# Full circle
Circle(
args=[1],
position=[0, 0, 0],
rotation=[-1.57, 0, 0],
material=dict(color="red"),
key="disc",
),
# Pac-Man (partial circle)
Circle(
args=[1, 32, 0, 5.5], # thetaLength < 2π creates pac-man
position=[2, 0, 0],
rotation=[-1.57, 0, 0],
material=dict(color="yellow"),
key="pacman",
),
)
await session.forever()

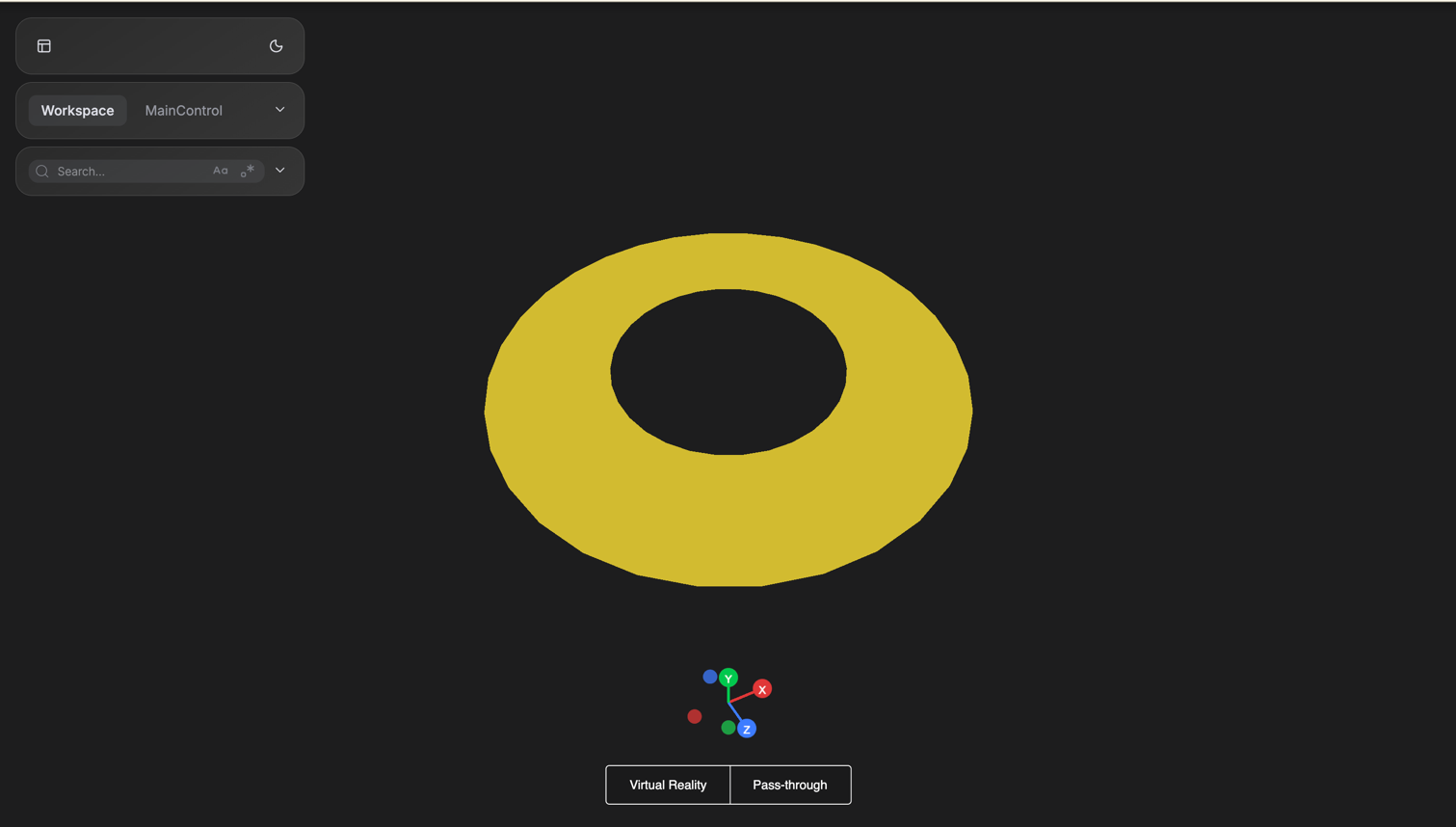

Ring
A flat ring shape with hollow center (annulus).
args = [
innerRadius, # default: 0.5
outerRadius, # default: 1
thetaSegments, # default: 32
phiSegments, # default: 1
thetaStart, # default: 0
thetaLength # default: 2π (full ring)
]
from vuer import Vuer, VuerSession
from vuer.schemas import Scene, Ring
app = Vuer()
@app.spawn(start=True)
async def main(session: VuerSession):
session.set @ Scene(
Ring(
args=[0.5, 1],
position=[0, 0, 0],
rotation=[-1.57, 0, 0],
material=dict(color="gold"),
key="ring",
),
)
await session.forever()

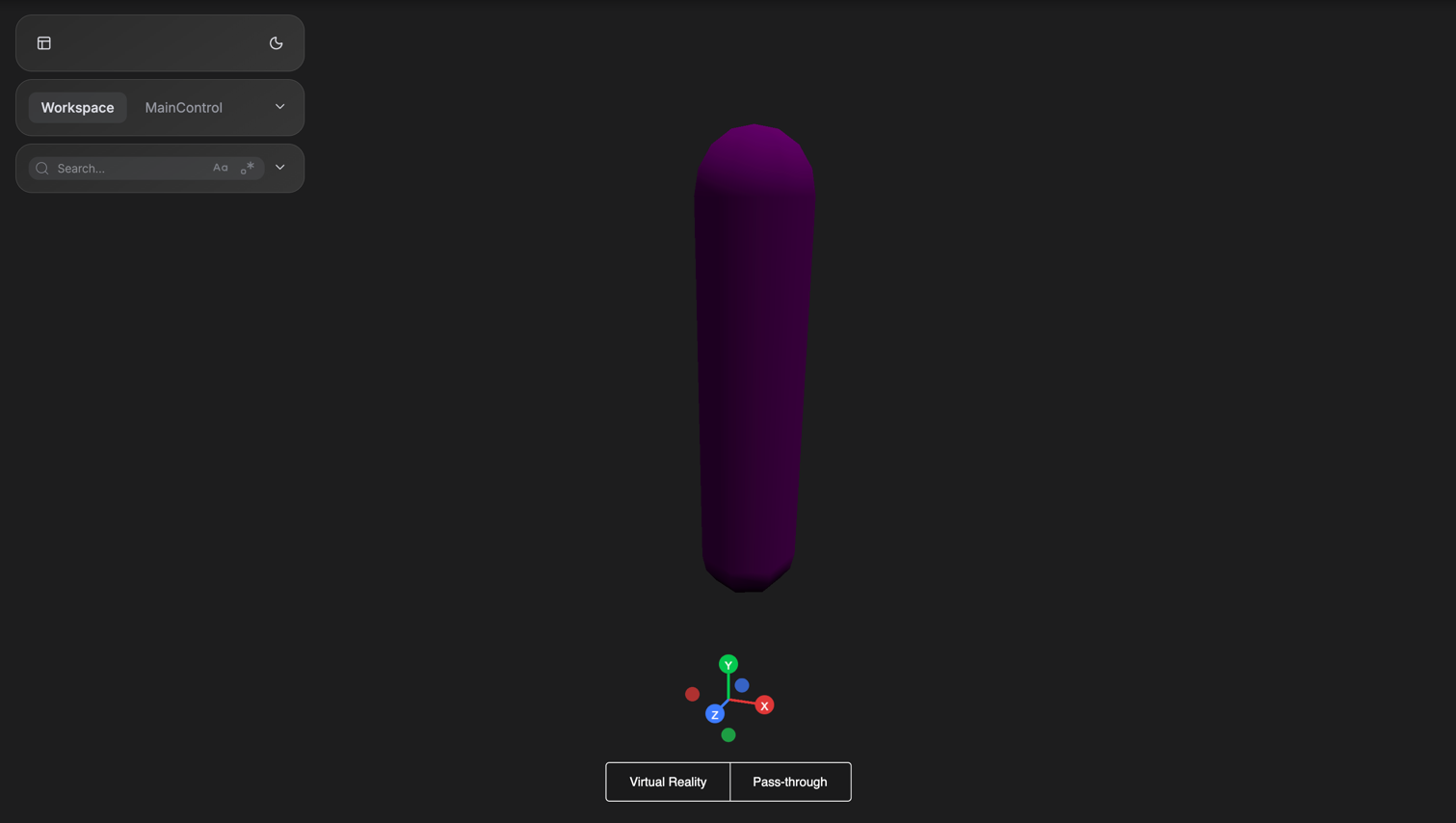

Capsule
A pill-shaped cylinder with rounded hemispherical ends.
args = [
radius, # default: 1
length, # default: 1 (cylindrical section length)
capSegments, # default: 4 (curve segments for each cap)
radialSegments # default: 8
]
from vuer import Vuer, VuerSession
from vuer.schemas import Scene, Capsule
app = Vuer()
@app.spawn(start=True)
async def main(session: VuerSession):
session.set @ Scene(
Capsule(
args=[0.3, 2],
position=[0, 1, 0],
material=dict(color="purple"),
key="pill",
),
)
await session.forever()

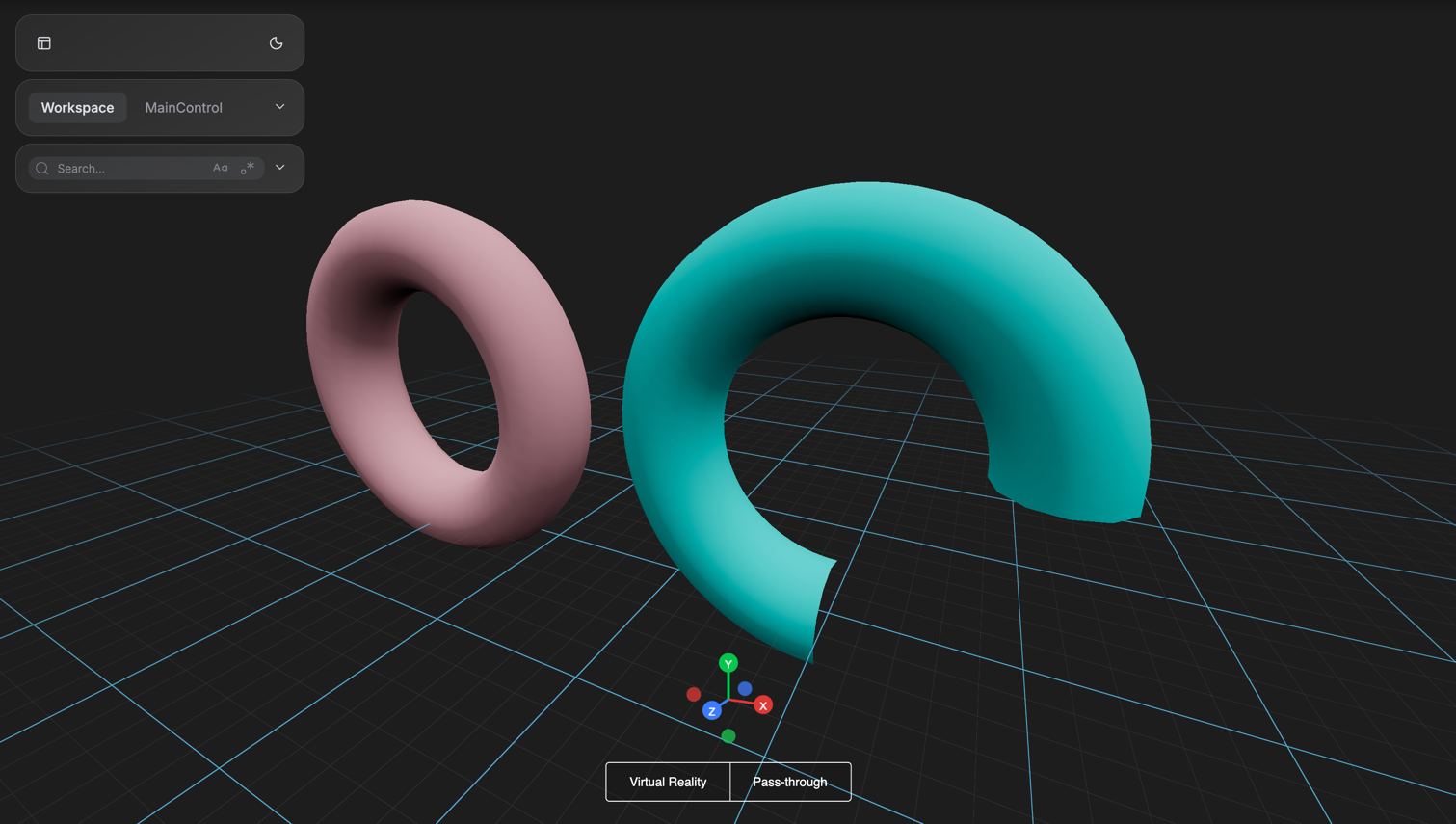

Torus
A 3D donut shape with customizable major and minor radii.
args = [
radius, # default: 1 (torus radius)
tube, # default: 0.4 (tube radius)
radialSegments, # default: 12 (segments along tube)
tubularSegments, # default: 48 (segments around torus)
arc # default: 2π (complete torus)
]
from vuer import Vuer, VuerSession
from vuer.schemas import Scene, Torus
app = Vuer()
@app.spawn(start=True)
async def main(session: VuerSession):
session.set @ Scene(
# Complete torus
Torus(
args=[1, 0.3],
position=[0, 1, 0],
material=dict(color="pink"),
key="donut",
),
# Partial torus (C-shape)
Torus(
args=[1, 0.3, 12, 48, 4.71], # arc < 2π creates C-shape
position=[3, 1, 0],
material=dict(color="cyan"),
key="c-shape",
),
)
await session.forever()

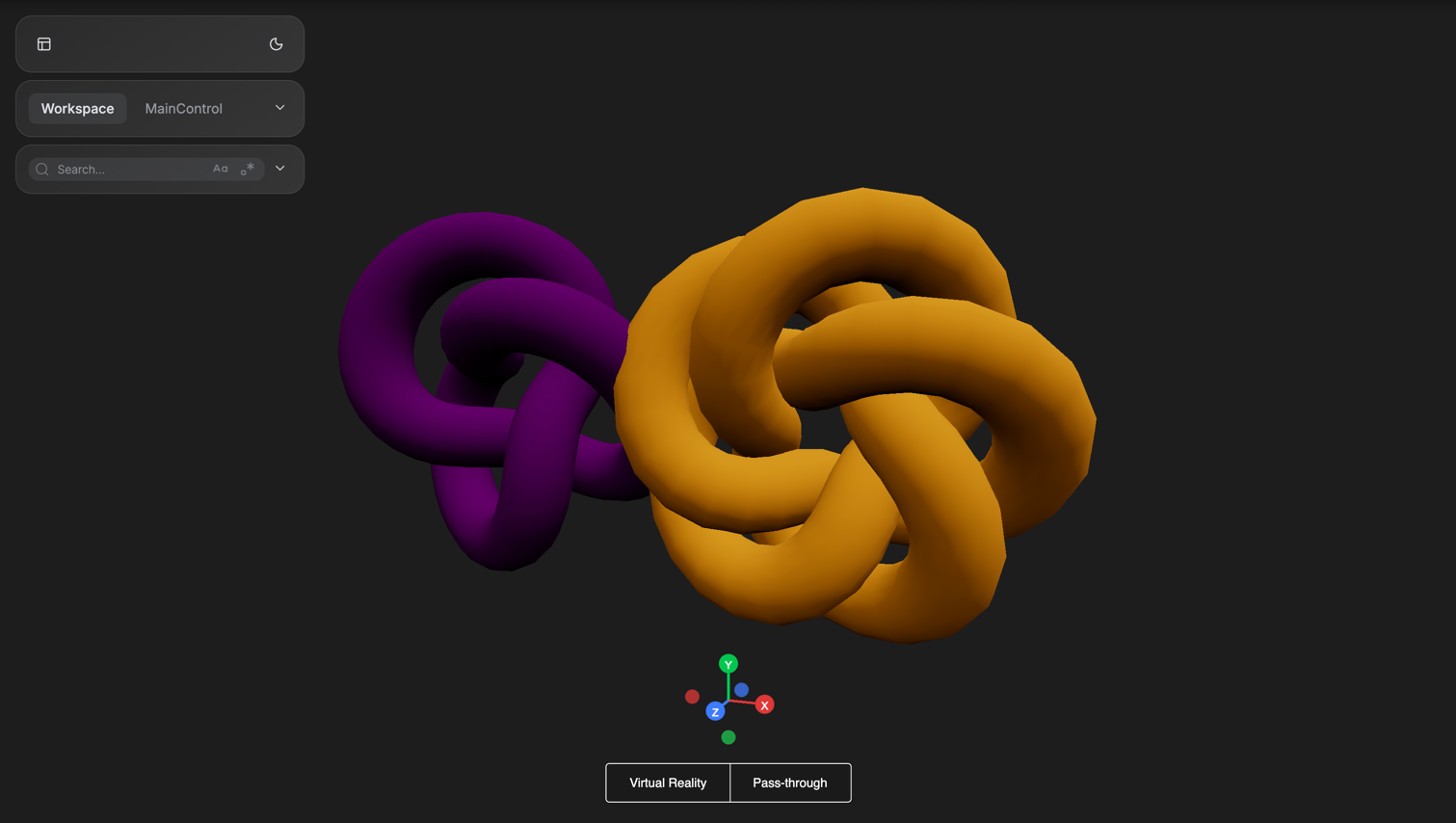

TorusKnot
An intertwined knot shape with customizable winding parameters.
args = [
radius, # default: 1
tube, # default: 0.4 (tube radius)
tubularSegments, # default: 64
radialSegments, # default: 8
p, # default: 2 (winds around rotational axis)
q # default: 3 (winds around central axis)
]
from vuer import Vuer, VuerSession
from vuer.schemas import Scene, TorusKnot
app = Vuer()
@app.spawn(start=True)
async def main(session: VuerSession):
session.set @ Scene(
# Trefoil knot (classic)
TorusKnot(
args=[1, 0.3, 100, 16, 2, 3],
position=[0, 1, 0],
material=dict(color="purple"),
key="trefoil",
),
# Cinquefoil knot
TorusKnot(
args=[1, 0.3, 100, 16, 3, 5],
position=[3, 1, 0],
material=dict(color="orange"),
key="cinquefoil",
),
)
await session.forever()

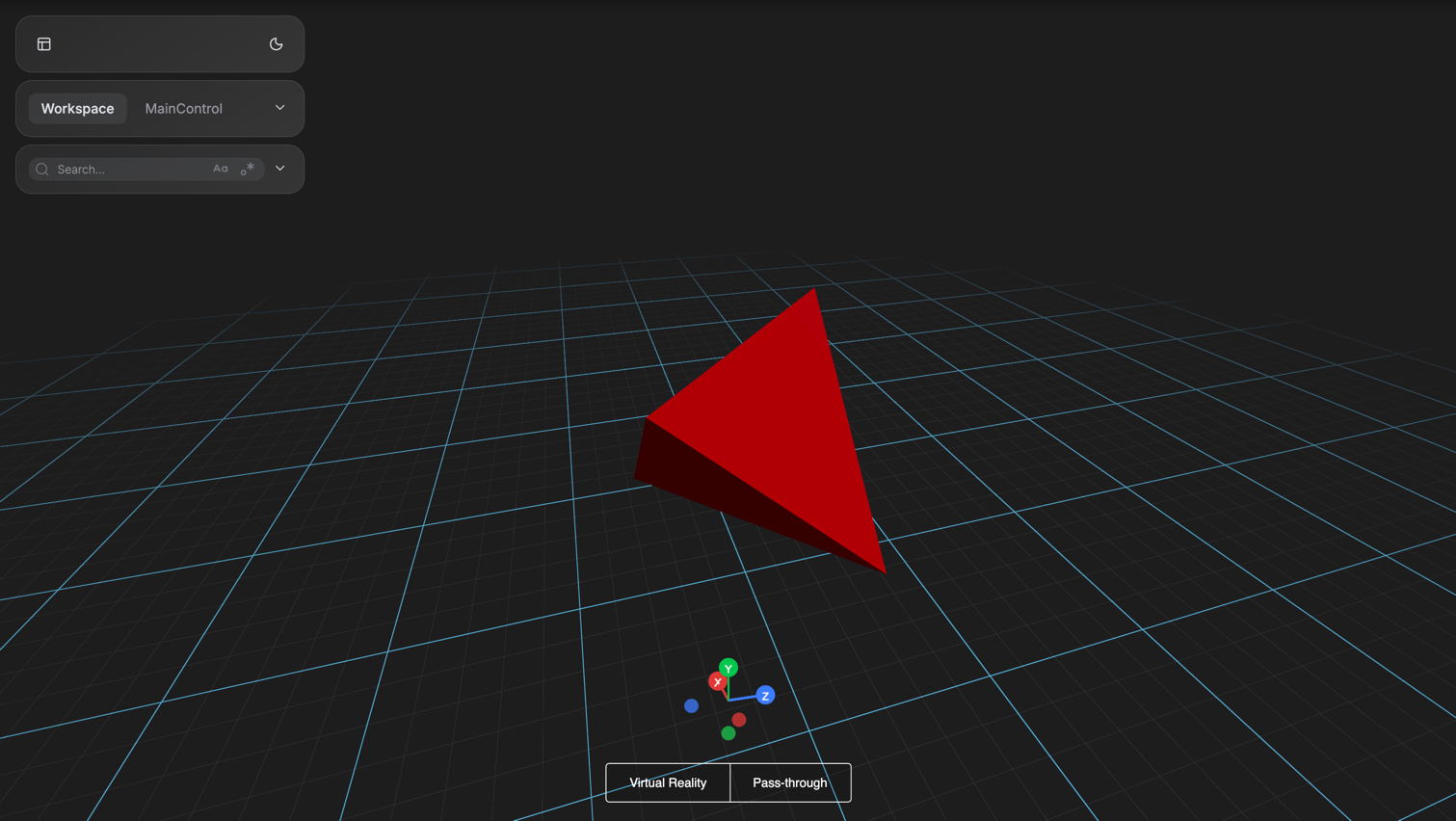

Tetrahedron (4 faces)
A pyramid-shaped polyhedron with four triangular faces, representing the simplest platonic solid.
args = [
radius, # default: 1
detail # default: 0 (subdivision level)
]
from vuer import Vuer, VuerSession
from vuer.schemas import Scene, Tetrahedron
app = Vuer()
@app.spawn(start=True)
async def main(session: VuerSession):
session.set @ Scene(
Tetrahedron(
args=[1],
position=[0, 1, 0],
material=dict(color="red"),
key="tetra",
),
)
await session.forever()

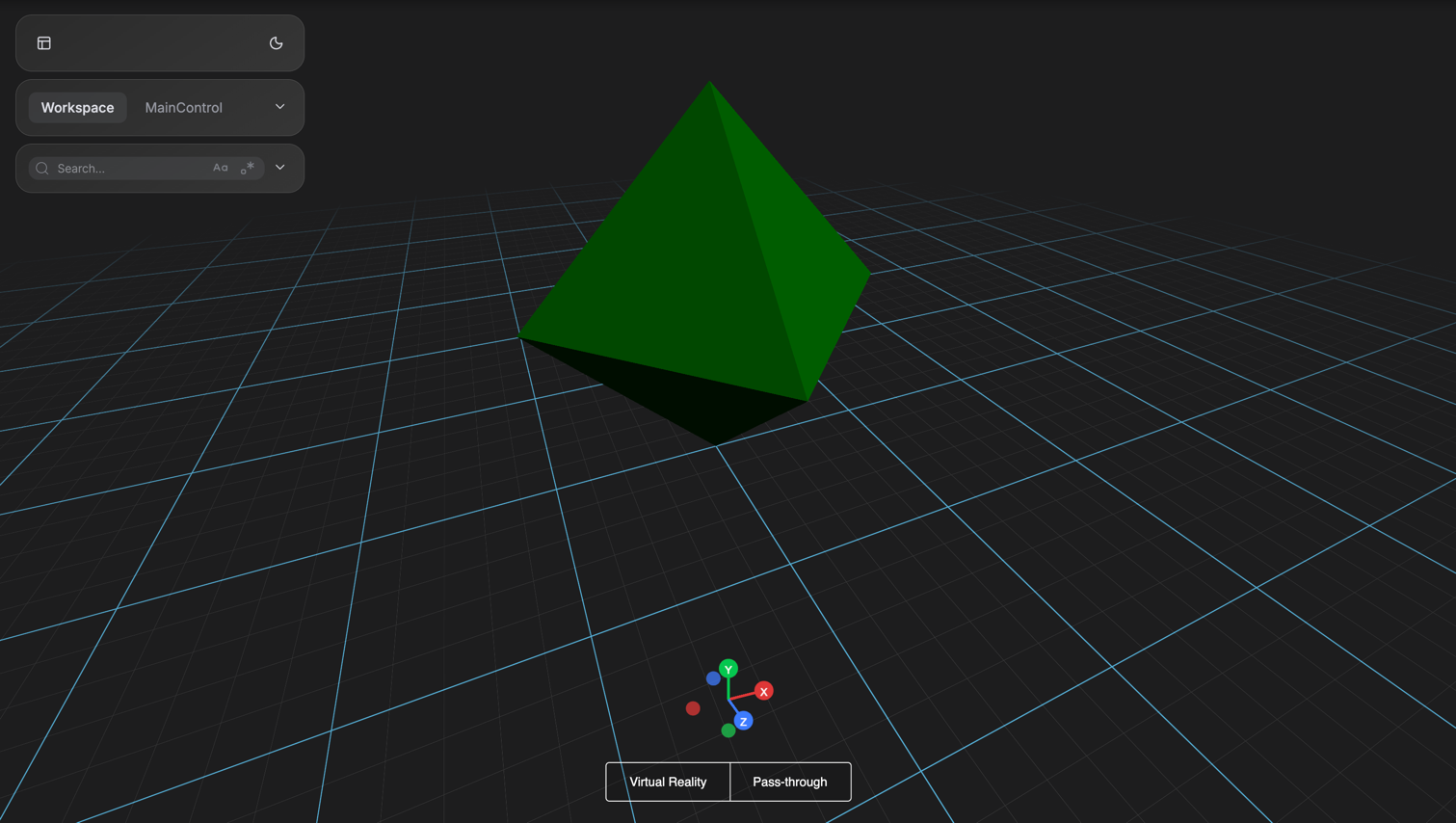

Octahedron (8 faces)
A diamond-shaped polyhedron with eight triangular faces, often used for gem-like objects.
args = [
radius, # default: 1
detail # default: 0 (subdivision level)
]
from vuer import Vuer, VuerSession
from vuer.schemas import Scene, Octahedron
app = Vuer()
@app.spawn(start=True)
async def main(session: VuerSession):
session.set @ Scene(
Octahedron(
args=[1],
position=[0, 1, 0],
material=dict(color="green"),
key="octa",
),
)
await session.forever()

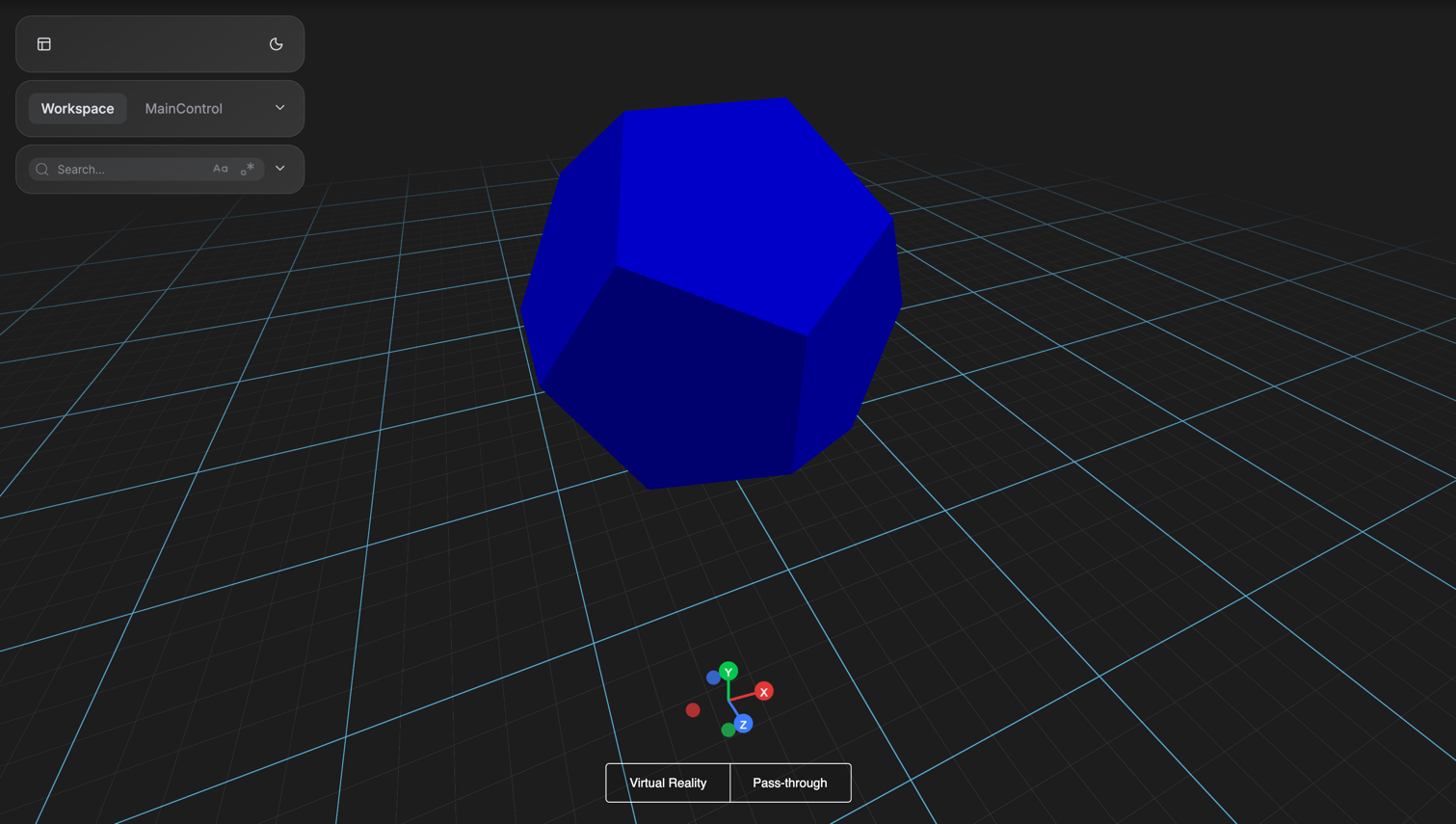

Dodecahedron (12 faces)
A soccer ball-like polyhedron with twelve pentagonal faces, creating a nearly spherical shape.
args = [
radius, # default: 1
detail # default: 0 (subdivision level)
]
from vuer import Vuer, VuerSession
from vuer.schemas import Scene, Dodecahedron
app = Vuer()
@app.spawn(start=True)
async def main(session: VuerSession):
session.set @ Scene(
Dodecahedron(
args=[1],
position=[0, 1, 0],
material=dict(color="blue"),
key="dodeca",
),
)
await session.forever()

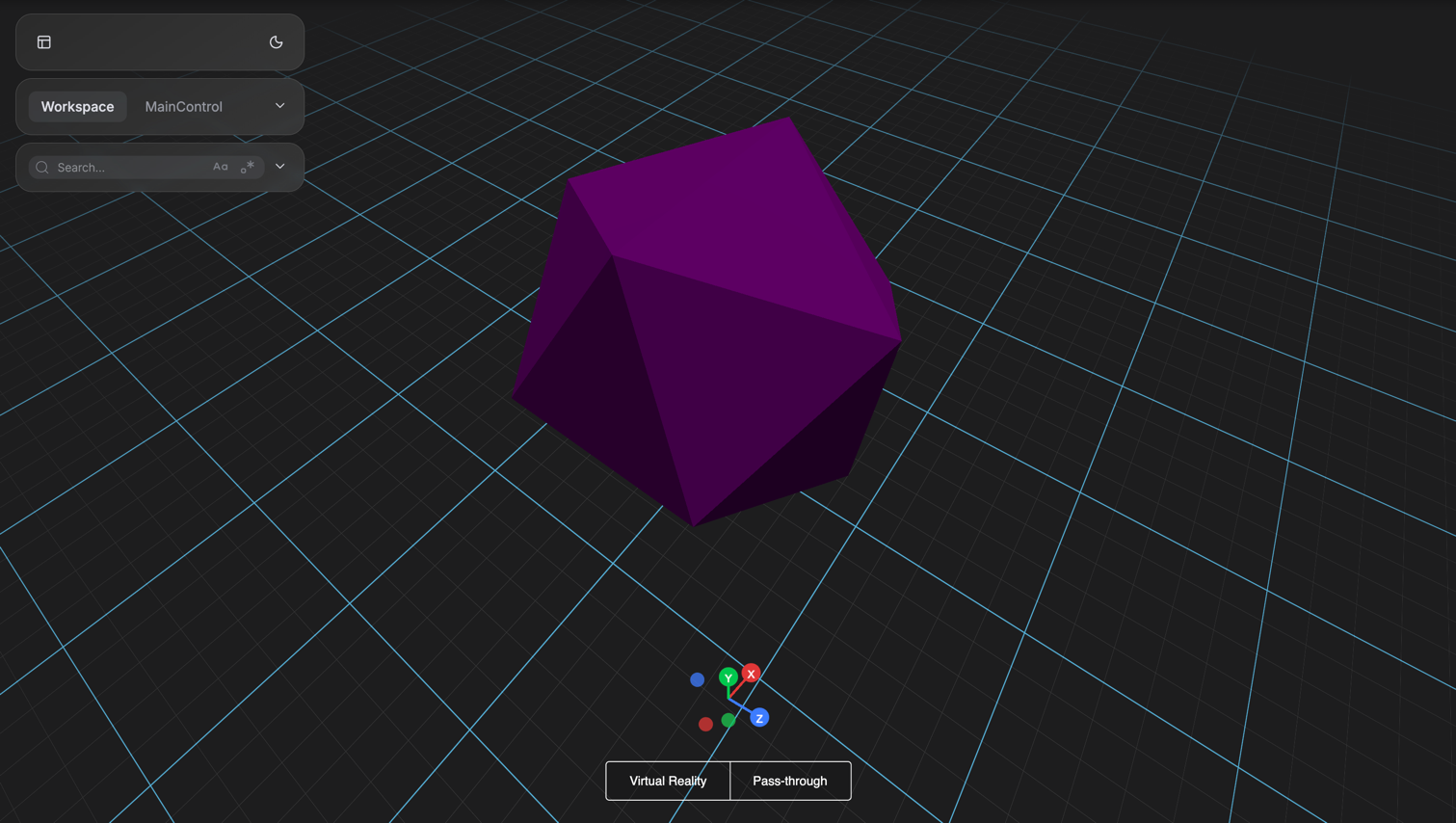

Icosahedron (20 faces)
A complex polyhedron with twenty triangular faces, the most sphere-like of the platonic solids.
args = [
radius, # default: 1
detail # default: 0 (subdivision level)
]
from vuer import Vuer, VuerSession
from vuer.schemas import Scene, Icosahedron
app = Vuer()
@app.spawn(start=True)
async def main(session: VuerSession):
session.set @ Scene(
Icosahedron(
args=[1],
position=[0, 1, 0],
material=dict(color="purple"),
key="icosa",
),
)
await session.forever()
Detail parameter: Higher values subdivide faces for smoother appearance:
detail=0: Sharp edges (default)detail=1: Slightly roundeddetail=2+: Approaches sphere
Tips
- Segment count affects performance: Higher segments = smoother but slower
- Use low poly (8-16 segments) for distant/small objects
- Use high poly (32-64 segments) for close-up hero objects
- Box is fastest, use for prototyping
- Sphere is expensive, consider Icosahedron for low-poly style
